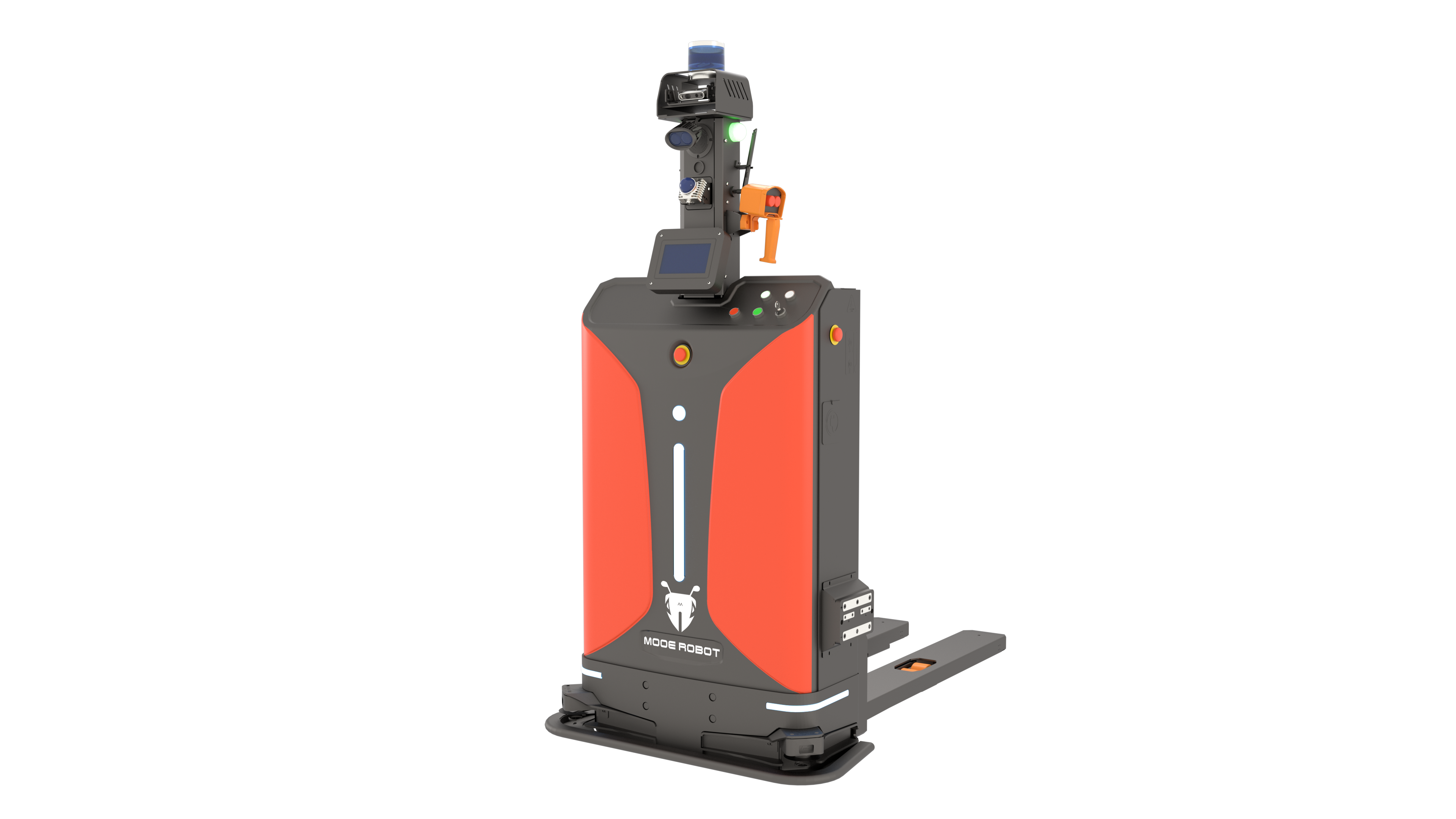

High-Level Transport
MEC1-1416
Precision high-level operations
Designed for North American high-bay racking systems. The C-Series delivers precision lifting and stacking for multi-level warehouse operations.
Technical Specifications
ModelMEC2-1416
Payload Capacity1,400 kg
Self Weight800 kg
Dimensions (L×W×H)1,780 × 985 × 2,000 mm
Lift Height1,600 mm
Max Speed1.5 m/s
BatteryLiFePO4 24V 400Ah
Runtime6-8 hours
Fork Dimensions1,270 × 170 mm
Min Turning Radius1,225 mm
NavigationMulti-line LiDAR + Mooe Core SLAM
Operating Temp-10°C to 45°C
Safety SystemsMulti-line LiDAR + Solid-state LiDAR + Anti-collision strips
Key Features
- Vertical stacking up to 1.6m
- Precision fork positioning
- Multi-directional obstacle detection
- Compatible with standard pallets
- No infrastructure changes
- Smart battery management
- Real-time position feedback
- Automatic height adjustment
Ideal Use Cases
- High-bay racking operations
- Putaway and retrieval
- Order picking support
- Multi-level warehouse operations
