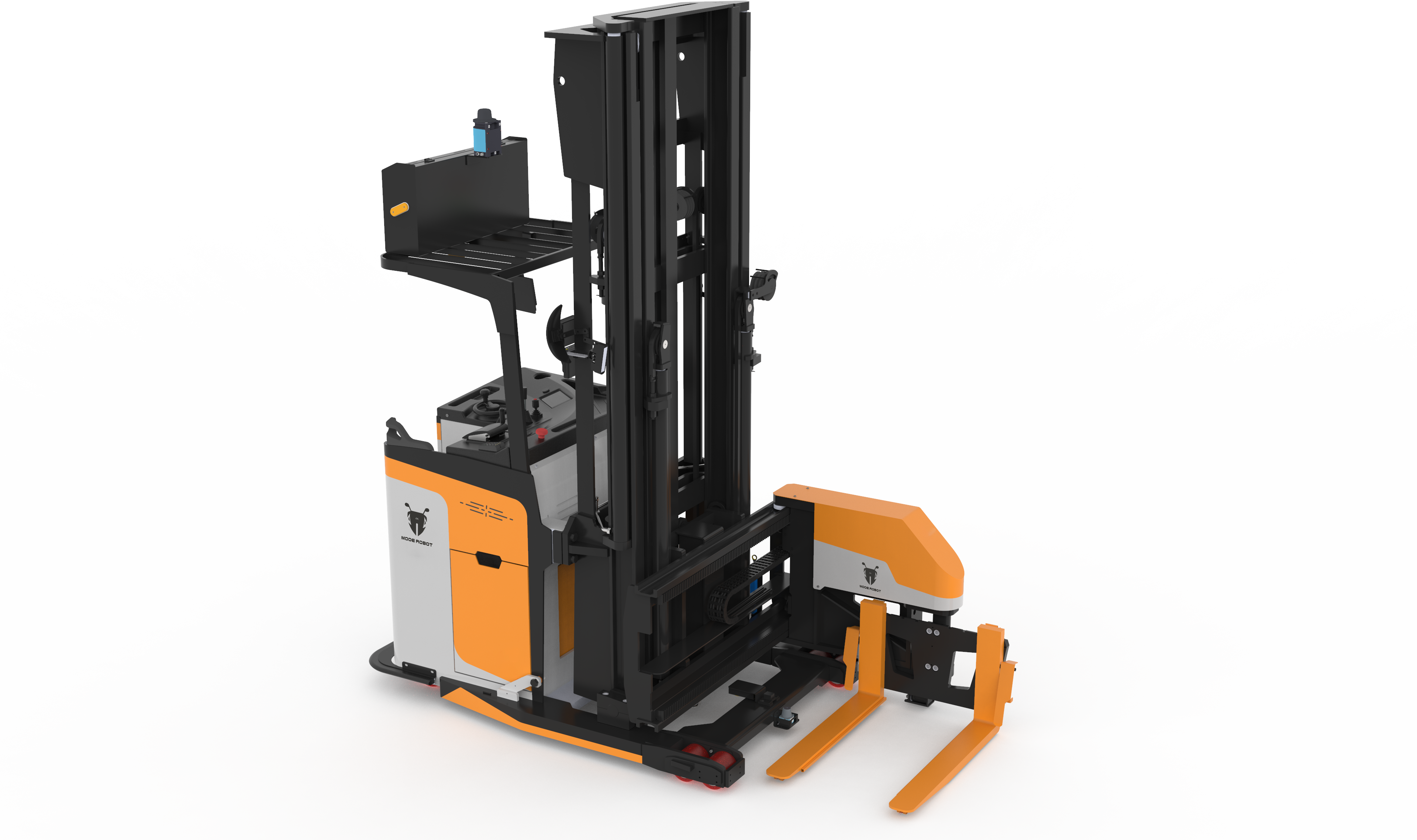

Trilateral Forklift
MEZ1-1675
Three-way stacker for high-density storage
The Z-Series trilateral stacker delivers maximum vertical space utilization by accessing pallets from three directions without turning. Features 7.5m lift height for high-bay racking systems.
Technical Specifications
ModelMEZ1-1675
Payload Capacity1,600 kg
Self Weight6,185 kg
Lift Height7,500 mm
Fork Spec1,200 × 122 × 50 mm
Min Aisle Width1,800 mm
Max Speed2.0 m/s
BatteryLiFePO4 48V 600Ah
Runtime6-8 hours
NavigationMulti-line LiDAR + Mooe Core SLAM
Operating Temp-10°C to 45°C
Safety SystemsMulti-line LiDAR + Solid-state LiDAR + Anti-collision strips
Key Features
- Three-way fork positioning
- Maximum aisle space utilization
- No turning required for pickup
- High-speed horizontal travel
- Precise pallet engagement
- Compatible with standard pallets
- Automatic direction switching
- Smart path optimization
Ideal For
- High-density pallet racking
- Narrow aisle storage
- Multi-directional pallet access
- Space-constrained warehouses
Maximize warehouse density
Deploy the Z-Series for three-way pallet access without turning.
Request Information
